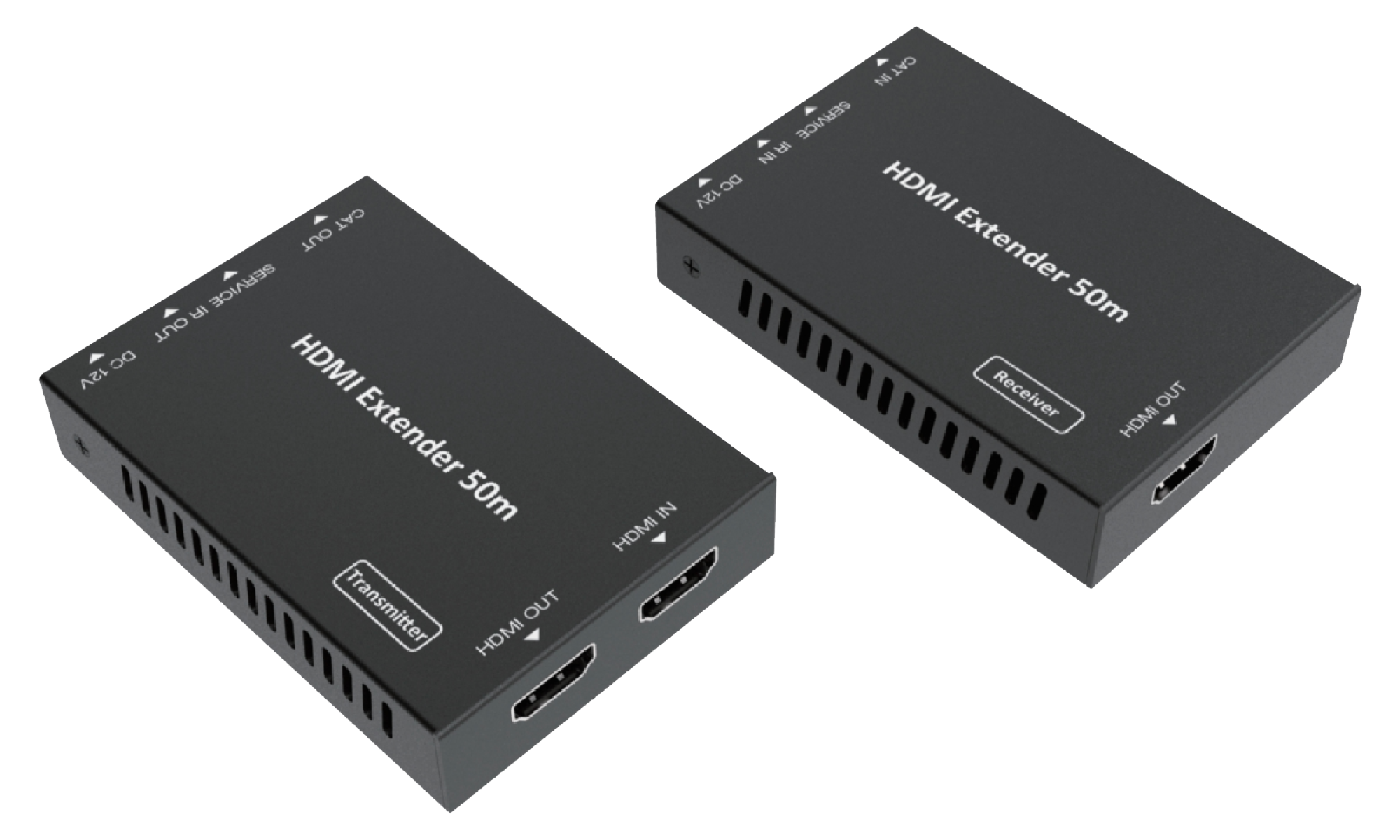

WDE-IR50
HDMI 18Gbps Extedner
With one-way IR

The HDMI 18Gbps Extender can extend high definition video / audio signal and one-way IR, and the distance is up to 164ft / 50 meters between transmitter and receiver over a single Cat5e/6 cable.

Multi-level support

It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps, and HDCP 2.2. In addition, the extender is equipped with a one-way IR pass-through which allows for source control and one HDMI loop output.

4K HDMI

Ultra HD 4K@30Hz

Matrix

Signal Amplifier

60GHz

Wireless Transmission

10~30M

Stable Transmission

USB-C

USB3.0&PD 20-IN-1

Delay<0.001s

No Delay in Transmission

Download Product Specification Sheet
Features
  • HDMI 2.0, HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant

  • Supports 18Gbps bandwidth

  • Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters

  • Supports one HDMI loop output

  • Supports one-way IR pass-through

Additional features
  • Supports HDR function

  • Supports PoC (Power over Cable) function, which means that either transmitter or a receiver is powered supply by 12V/1A power adapter, the other doesn’t need a power supply.)

  • Supports automatic copy EDID function

  • Compact design for easy and flexible installation.

Specifications

HDMI Compliance

HDMI 2.0



HDCP Compliance

HDCP 2.2 / HDCP 1.4



Video Bandwidth

18Gbps



Video Resolution

Up to 4K60HZ 4:4:4

Color Space

RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4



Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 )



HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

ESD Protection

Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
